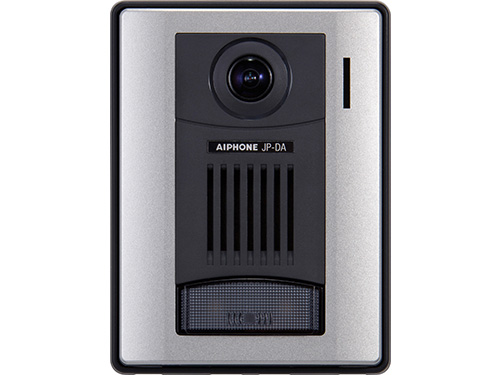

Aiphone – JP-DA – Surface Mount Video Door Station – As supplied with the JP Kits. Plastic.
$688.20 RRP Inc GST
The Aiphone JP-DA Surface Mount Color Video Door Station is used with the JP Series Video Intercom. The unit mounts to a 1-gang box and is made from sturdy ABS plastic with a clear polycarbonate lens cover.
The Aiphone JP-DA door station features a color 1/4″ CMOS camera, speaker and microphone for communication, illuminated call button and white illumination LED for low light conditions.
Type of communication | Open voice hands-free auto-voice actuation |
Camera | Type: 1/4″ CMOS Viewing Angle: Wide (approx. 100° x 170°) with Digital PTZ |
Mounting | Mounts directly to wall 1-gang box or ring |
Wire Type | 2-cond., low cap, non-shielded – use Aiphone #871802 |
Wire Distance | 165′ (22AWG), 300′ (18AWG) |
Temperature Rating | 14° ~ 140°F (-10°~60°C) |
Dimensions | 5-1/16″ H x 3-13/16″ W x 1-3/16″ D |
