AIP-IX-SSA

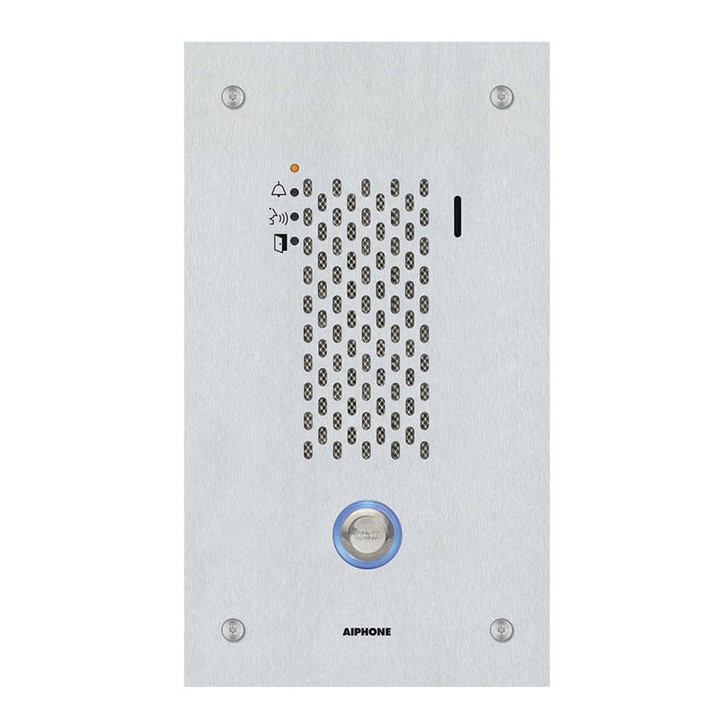

Aiphone – IX-SSA – Door Station Audio – Stainless – Flush

$1,419.20 RRP Inc GST

Quantity

Aiphone IX-SSA IX Series IP Audio Door Station Flush Mount



Description



SIP Compatible Flush Mounted IP Door Station
Vandal Resistant Stainless Steel Cover

Need this station with UL Certification? Be sure your model has a UL sticker or contact Aiphone for more details.

The Aiphone IX-SSA is a SIP compatible flush mount IP Door station, it is vandal resistant and has a stainless steel cover.

This Aiphone IP Door station can be programmed to call up 20 different stations with three different call levels to choose from.



Features



  • SIP 2.0 Compliant
  • 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
  • Illuminated call button indicator
  • Slot for micro SD card (not provided by Aiphone)
  • IP65 rated, weather resistant (IP65)
  • 2 contact outputs
  • 6 trigger inputs



Specifications



Power Source PoE (IEEE 802.3af class 0)
Power Draw 3.36 Watts
Audio Codec G.711 (μ-law, A law), G.722
Protocols IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security IEEE 802.1X
Operating Temp -40° – 140°F (-40° – 60°C)
Ingress Protection IP65
Impact Protection IK07
Dimensions 10-7⁄16″ H x 5-⅞” W
Mounting Flush mounted with included back box, or surface mount with the SBX-IDVF Stainless Steel surface mount box
SKU AIP-IX-SSA Categories , , , ,
