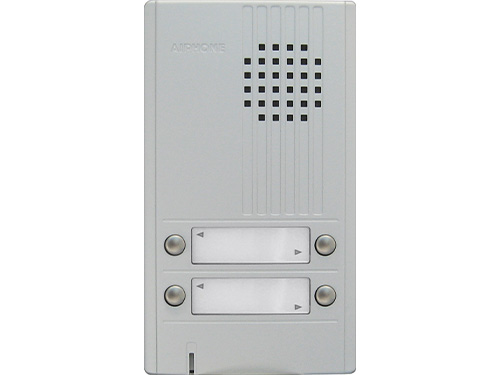

Aiphone – DA-4DS – Door Station Surface Mount Four Call – Silver
$223.80 RRP Inc GST
The DA-4DS is a Door Station from Aiphone that comes in 4-call button and silver colour.
The Aiphone DA series is an intercom entry system with a phone handset. The Aiphone DA systems can be expanded for use in small apartment applications.
Two and Four tenant door stations are available, and one handset must be purchased for each unit, as well as a power supply for each handset. The handset also includes buttons for releasing the door or opening a garage door or gate. (Additional components are necessary for opening a door and/or external device).
Communication | Hands-free |
Door Release | 9.5~20V AC, 70Ω or higher resistance – use EL-12S |
Temp. Rating | 14° ~ 140°F (-10° ~ 60°C) |
Material | Aluminum cover |
Mounting | Surface mount directly to wall |
Wire Type | Entrance Station to Tenant Station: 2-cond., overall shield – use Aiphone #822202 or 2-cond., low cap, PE insulation, solid, non-shielded – use Aiphone #871802 |
Distance | Power Supply to Entrance Station (cumulative): 360′(22AWG) 1,020′(18AWG) |
