AIP-DA-1DS

$115.83 MSRP inc.GST

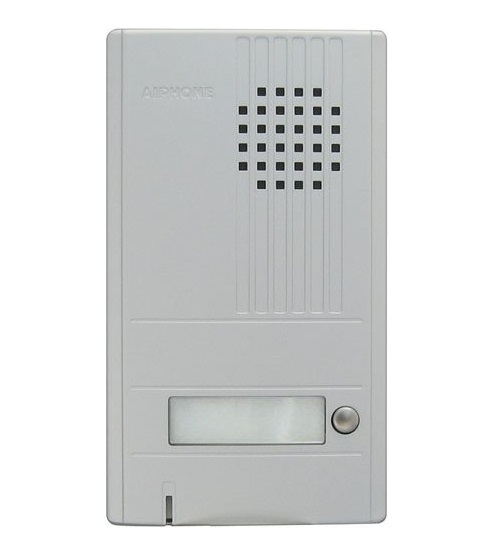

Aiphone – DA-1DS – Door Station Suit DA – DB Series – Silver

DA Series: Two-Wire Door System

Note that the DA-1DS is only the Door Station in this system.



This door entry system with handset communication has built-in release contacts at the door.



  • Door release powered by door station without the need of an additional transformer
  • Designed for EL-12S door strike only
  • Backlit directory
  • Simple two-wire connection for intercom and door release (Door strike wires directly to door station)
  • Vandal resistant door stations
  • Extra function button on tenant station can be used to activate light at entry ( Requires additional wiring)

Specifications:

Power Source

15V AC – Use AC transformer PT-1211C, 120V

Communication

Press and hold down button to call

Door Release

Contact rating: 16V AC, 20Ω min. resistance, or use EL-12S only

Wiring

Door to master: 2-cond., overall shield

Distance

Door to master: 180’(22AWG) 500’(18AWG)

Wire Type

Aiphone #822202
